iRETOR (Ring and cap not included) TIN Treatment on the gold part
Internal Hex 2.5 mm Implant ø 3.7 – 4.1 – 4.7 – 5


TIN
از گذشته های دور نشان SWISS MADE به معنای اطمینان و برتری در دقت تولید وکیفیت تولید نسبت به محصولات مشابه بوده و هست ، شرکت iRESسوئیس در سال 2014 و با استفاده از تجربیات افراد صاحب نام و برتر در این حوزه و با همکاری مدیران و طراحان شرکت های معتبر اروپایی نظیر Straumann و بر اساس فناوری و تفکر افراد خبره و کلیدی مطرح حوزه ایمپلنت KEY (Key Opinion Leader) محصولات خود را به بازار عرضه نموده است و هم اکنون علیرغم عمر کوتاه خود سهم قابل توجهی از بازار کشورهای اروپائی و همچنین بخشی از بازار جهانی را بواسطه کیفیت کم نظیر خود جذب نموده است.
شرکت iRES با بیش از 30 سال تجربه در زمینه تولید و بهینه سازی مستمر بنابر رضایتمندی مشتریان و با شعار RELIABLE- EFFICIENT AND SAFE توانسته به هر سه مورد ادعای خود یعنی قابل اعتماد بودن ،کارآمدی و امنیت محصول را ثابت نماید و این مهم بنابر میزان رضایتمندی مشتریان و همجنین جامعه دندانپزشکان جهان و همچنین دندانپزشکان کشور به دست آمده است.
شرکت فرادید دانش پس از 3 سال تحقیق و بررسی گسترده و دریافت گزارشهای مستمر و مرتبط با ایمپلنت iRES از جانب جامعه علمی و تحقیقاتی و جامعه دانشگاهی مرتبط با این رشته و همچنین مذاکرات فراوان با مدیران ارشد شرکتiRES اقدام به عقد قرارداد با شرکت سوییسی iRESنمود.

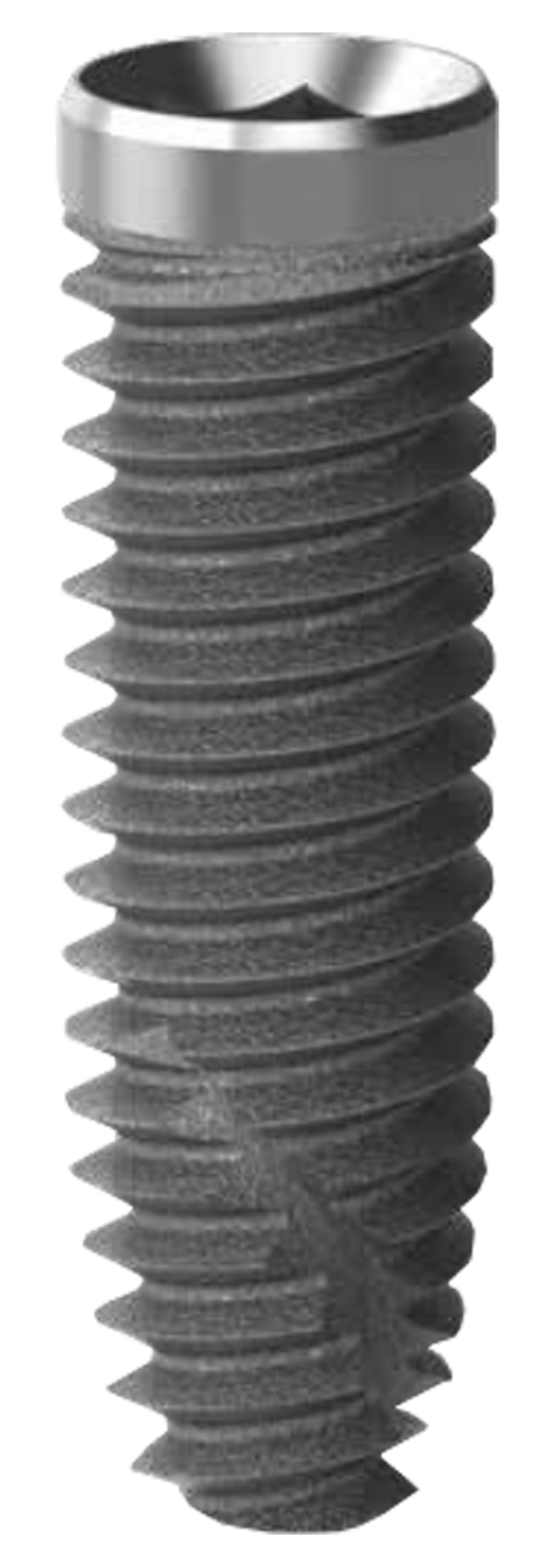

1. Hexagonal internal connection with Friction Fit;
2. Machined neck with double platform switching and profile with toothed hermetic cover. It distributes the pressure on the cortical bone and ensures a seal that prevents the penetration of bacteria and the onset of peri- implantitis;
3. Implant with ogival design (bullet type). It ensures a higher penetration capacity;
4. Pronounced threads with cutting profile. They provide higher primary stability and self-tapping properties. Higher stability in soft bone 3⁄4 and less compression in hard bone 1⁄2);
5. Spiral counter-unload furrows. They increase primary stability and prevent the progression of peri-implantitis, interrupting the spires that act as a chute for bacteria;
6. Tip with self-perforating auger design with grinding effect. It produces bone shavings and stimulates osteogenesis.
Volution SVB | Ø |
h 10 | 11.5 | 13 | 16 | Ø 3.3 |
h 6.5 | 8 | 10 | 11.5 | 13 | 16 | Ø 3.75 |
h 6.5 | 8 | 10 | 11.5 | 13 | 16 | Ø 4.1 |
h 6.5 | 8 | 10 | 11.5 | 13 | 16 | Ø 4.7 |
h 6.5 | 8 | 10 | 11.5 | 13 | Ø 5.2 |

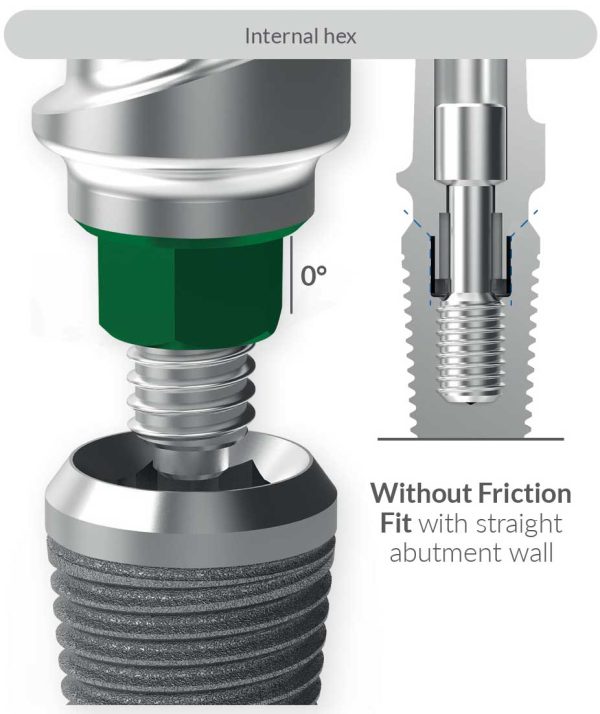

screw has been tightened at 30 Ncm. It eliminates micro movements and reduces bacterial infiltration between implant and abutment.

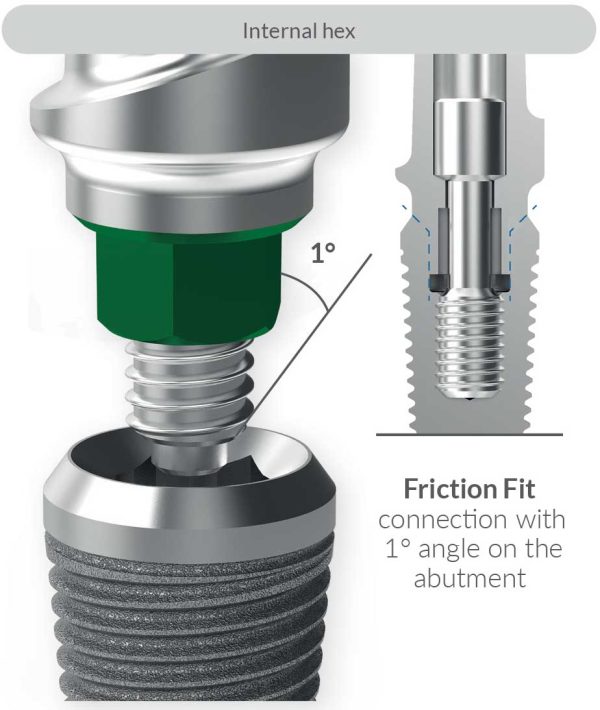

Prosthetic components with Friction Fit connection have been developed for SVB implant systems with internal hex connection. This connection ensures a “cold fusion” between implant and abutment if the retaining
CASTABLE ABUTMENTS S1BRS1 screw included Internal Hex 2.1 mm Implant ø 3.3
Gold base POM-C/ AU&PGM ø4.5mm
POM-C ø3.5mm
Rotating POM-C ø3.5mm
Titanium base TI-6AI-4V
iRETOR (Ring and cap not included) TIN Treatment on the gold part
Internal Hex 2.5 mm Implant ø 3.7 – 4.1 – 4.7 – 5
TIN
iRETOR ACCESSORIES Internal Hex 2.5 mm Implant ø 3.7 – 4.1 – 4.7 – 5.2
Analog for
iRETOR
female coupling
Q.ty:4
AI
Indirect
impression
tear pin for
iRETOR
Q.ty:4
AI
Set of cups and
rings for parallel
implants
Q.ty:1
Ti | Nylon
Resistant
male
(1.8kg)
Q.ty:4
Light
male
(1.2kg)
Q.ty:4
Extralight
male
(0.6kg)
Q.ty:4
DEFINITIVE STRAIGHT ABUTMENTS | ANATOMIC S1BRS1 screw included | Material TI-6AI-4V
Internal Hex 2.5 mm Implant ø 3.7 – 4.1 – 4.7 – 5.2
Internal Hex 2.1 mm Implant ø 3.3
ANATOMIC DEFINITIVE ANGLED ABUTMENTS S1EHNRS2 screw included | Material TI-6AI-4V
Internal Hex 2.1 mm Implant ø 3.3
Ø 4mm
15°
h | Code |
1 | S1BN211540 |
3 | S1BN231540 |
Internal Hex 2.5 mm Implant ø 3.7 – 4.1 – 4.7 – 5.2
Ø 4.5 mm
25°
h | Code |
1 | S1B212545 |
3 | S1B232545 |
Internal Hex 2.5 mm Implant ø 3.7 – 4.1 – 4.7 – 5.2
Ø 4.5 mm
15°
h | Code |
1 | S1B211545 |
3 | S1B231545 |
Internal Hex 2.1 mm Implant ø 3.3
Ø 4mm
25°
h | Code |
1 | S1BN212540 |
3 | S1BN232540 |
Gold base
/POM-C
AU&PGM
ø5mm
POM-C
ø4.5mm
Rotating
POM-C
ø4.5mm
Titanium base
TI-6AI-4V
DIRECT IMPRESSION TRANSFER S1BDTRS screw included | Material TI-6AI-4V
Internal Hex 2.1 mm Implant ø 3.3
Multifunction
abutment
Ø 3.2 mm
Internal Hex 2.1 mm Implant ø 3.3
Ø 3.5 mm
Internal Hex 2.5 mm Implant ø 3.7 – 4.1 – 4.7 – 5.2
Ø 5 mm
Internal Hex 2.5 mm Implant ø 3.7 – 4.1 – 4.7 – 5.2
Ø 3.5 mm
Internal Hex 2.5 mm Implant ø 3.7 – 4.1 – 4.7 – 5.2
Multifunction
abutment
Ø 5 mm
with flared
profile
TEMPORARY STRAIGHT ABUTMENTS S1BRS1 screw included
Internal Hex 2.5 mm Implant ø 3.7 – 4.1 – 4.7 – 5.2
Rotating
TI-6AI-4V
ø4mm
Internal Hex 2.5 mm Implant ø 3.7 – 4.1 – 4.7 – 5.2
PEEK
ø4mm
Internal Hex 2.5 mm Implant ø 3.7 – 4.1 – 4.7 – 5.2
Anti rotation
TI-6AI-4V
ø4mm
Internal Hex 2.1 mm Implant ø 3.3
Anti rotation
TI-6AI-4V
ø3.5mm
Internal Hex 2.1 mm Implant ø 3.3
PEEK
ø3.5mm
Internal Hex 2.1 mm Implant ø 3.3
Rotating
TI-6AI-4V
ø3.5mm
Internal Hex 2.5 mm Implant ø 3.7 – 4.1 – 4.7 – 5.2
Ø 3.5mm
3 | S1B3530HCC |
4.5 | S1B3545HCC |
6 | S1B3560HCC |
Internal Hex 2.5 mm Implant ø 3.7 – 4.1 – 4.7 – 5.2
Ø 6mm
3 | S1B6030HCC |
4.5 | S1B6045HCC |
Internal Hex 2.5 mm Implant ø 3.7 – 4.1 – 4.7 – 5.2
Ø 5mm
3 | S1B5030HCC |
4.5 | S1B5045HCC |
6 | S1B5060HCC |
Internal Hex 2.5 mm Implant ø 3.7 – 4.1 – 4.7 – 5.2
S1BIA
Internal Hex 2.5 mm Implant ø 3.7 – 4.1 – 4.7 – 5.2
Multifunction
abutment
Ø 5 mm
with flared
profile
Internal Hex 2.5 mm Implant ø 3.7 – 4.1 – 4.7 – 5.2
Multifunction
abutment
Ø 5 mm
Internal Hex 2.1 mm Implant ø 3.3
Ø 3.5mm
3 | S1BN3530HC |
4.5 | S1BN3545HC |
6 | S1BN3560HC |
Internal Hex 2.1 mm Implant ø 3.3
With flared
profile
Ø 3.5 mm
1 | S1BN3510HCC |
3 | S1BN3530HCC |
4.5 | S1BN3545HCC |
6 | S1BN3560HCC |
Internal Hex 2.1 mm Implant ø 3.3
S1BNIA
Internal Hex 2.1 mm Implant ø 3.3
Multifunction
abutment
Ø 3.5 mm
with flared
profile
Internal Hex 2.1 mm Implant ø 3.3
Multifunction
abutment
Ø 3.5 mm
